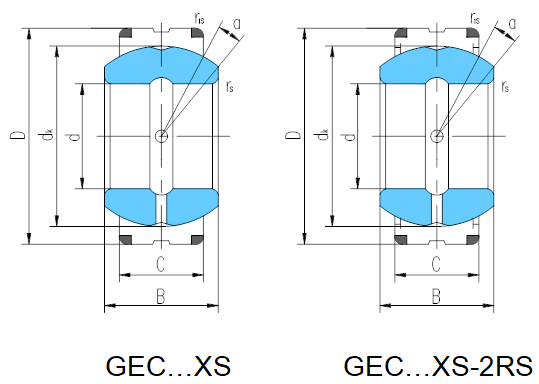

產品編號：GEC…XS 320～630
??????????GEC...XS-2RS 320～630
滑動磨擦副： 鋼/鋼
產品特點：外圈沿軸向隔分成兩半，用鎖圈固定，內、外圈材料均為軸承鋼，淬火，磷化，滑動表面涂敷二硫化鉬，后置代號有-2RS為外圈兩端帶有密封圈。
使用溫度范圍：GEC...XS -50℃～+150℃
??????????????GEC...XS-2RS -30℃～+130℃
軸 承 型 號 Bearing number | 外 形 尺 寸 Dimensions mm | 額定載荷 Load ratings kN | 重 量 Weight ≈kg | |||||||||
d | D | B | C | dk | rs min | r1s min | α? ≈ | 動載荷 Dynamic | 靜載荷 Static | |||
GEC320XS | GEC320XS-2RS | 320 | 440 | 160 | 135 | 380 | 1.1 | 3 | 4 | 4400 | 22000 | 78 |
GEC340XS | GEC340XS-2RS | 340 | 460 | 160 | 135 | 400 | 1.1 | 3 | 3 | 4650 | 23200 | 83 |
GEC360XS | GEC360XS-2RS | 360 | 480 | 160 | 135 | 420 | 1.1 | 3 | 3 | 4800 | 24000 | 87 |
GEC380XS | GEC380XS-2RS | 380 | 520 | 190 | 160 | 450 | 1.5 | 4 | 4 | 6300 | 31500 | 129 |
GEC400XS | GEC400XS-2RS | 400 | 540 | 190 | 160 | 470 | 1.5 | 4 | 3 | 6550 | 32500 | 135 |
GEC420XS | GEC420XS-2RS | 420 | 560 | 190 | 160 | 490 | 1.5 | 4 | 3 | 6800 | 34500 | 141 |
GEC440XS | GEC440XS-2RS | 440 | 600 | 218 | 185 | 520 | 1.5 | 4 | 3 | 8650 | 42300 | 196 |
GEC460XS | GEC460XS-2RS | 460 | 620 | 218 | 185 | 540 | 1.5 | 4 | 3 | 9000 | 45000 | 204 |
GEC480XS | GEC480XS-2RS | 480 | 650 | 230 | 195 | 565 | 2 | 5 | 3 | 9800 | 49000 | 239 |
GEC500XS | GEC500XS-2RS | 500 | 670 | 230 | 195 | 585 | 2 | 5 | 3 | 10200 | 51000 | 248 |
GEC530XS | GEC530XS-2RS | 530 | 710 | 243 | 205 | 620 | 2 | 5 | 3 | 11400 | 57000 | 294 |
GEC560XS | GEC560XS-2RS | 560 | 750 | 258 | 215 | 655 | 2 | 5 | 4 | 12700 | 64000 | 345 |
GEC600XS | GEC600XS-2RS | 600 | 800 | 272 | 230 | 700 | 2 | 5 | 3 | 14600 | 73500 | 413 |
GEC630XS | GEC630XS-2RS | 630 | 850 | 300 | 260 | 740 | 3 | 6 | 3 | 17600 | 88000 | 538 |
